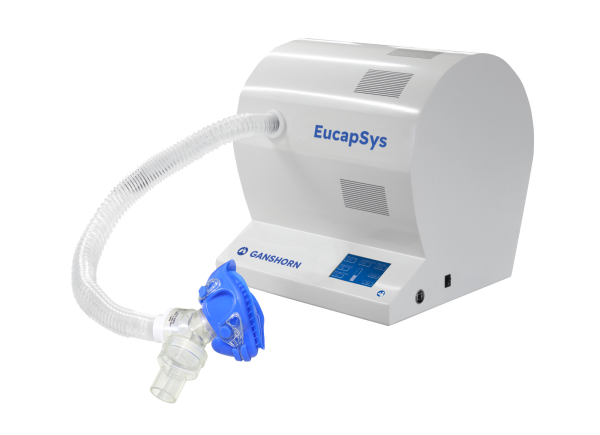

EucapSys

SKU: 012370403
Category: Products
Manufacturers: SMTEC Sport & Medical Technologies SA

Eucapnic voluntary hyperpnea provocation system.
Drug free asthma diagnosis.

Prices visible after login

Delivery time: 2 - 5 Workdays (DE - int. shipments may differ)

Description

The eucapnic voluntary hyperventilation test (EVH) is a drug-free alternative to other provocation tests and thus enables further assessment of exercise-induced respiratory diseases such as asthma.

It simulates breathing during exercise and is ideal for diagnosing exercise-induced airway obstruction. The EucapSys system enables cost-effective use of the EVH, as it mixes the eucapnic gas concentration itself.

The most important features of the EucapSys at a glance:

Drug-free provocation test with dry air
Compact and easy to implement device
High specificity, therefore fewer false positive results
Simple operation with touch screen
Low operating costs with standardized gas

Measurement principle

First, the FEV1 value is determined using forced spirometry as a baseline. The patient then breathes a dry gas mixture with 5% CO2 at room temperature through a breathing mask for about 6 minutes and hyperventilates. The EucapSys continuously monitors the individual target. Post-measurements are taken after the challenge. A decrease in the FEV1 value of more than 10% compared to the baseline may indicate asthma.

Clinical use

The EucapSys reduces gas-related costs by 90%, making gas supply significantly easier and more secure. Using cost-efficient cylinders for compressed air and CO2, the system generates the required hypercapnic mixture. An innovative, patented technology enables this mixture to be generated in stages, up to 200 l/min as required. The CO2 content is dynamically regulated to 5%, which corresponds to a PetCO2 of 40 mmHg.

Included in the scope of delivery:

oxygen Sensor
patient tube
2 x face mask (size: S and M)
two-way-valve

Item weight:	15,00 kg
Electric power supply:	110 -220 Volts
Display:	in situ adjustable mixture of dry air and CO2
Regulation:	electronic PID -type
Principle:	Instant display of air flow in l/min CO2 fraction in % test time in min/sec
Regular CO2 fraction:	5%
Accuracy of CO2 fraction:	0.01%
Production of mixture:	as needed, in accordance with consumption
Air flow rate:	up to 220 l/min
CO2 supply:	via a CO2 cylinder
Air flow control:	using a syringe
