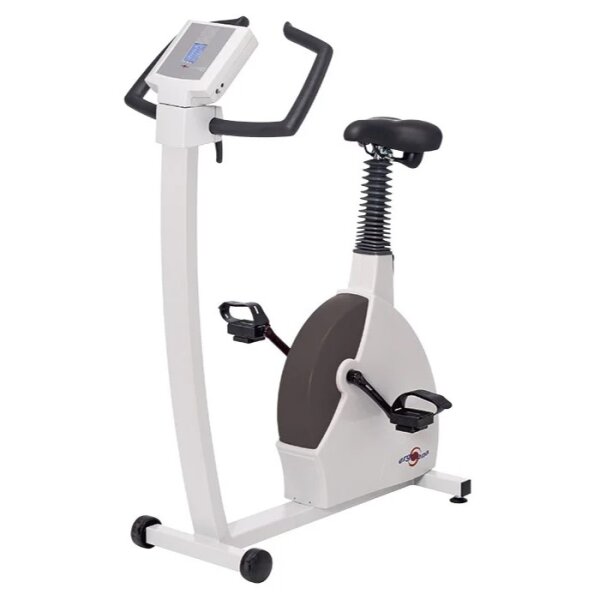

SanaBike 500 Bicycle ergometer

Patient’s body size: 120 – 210 cm (Infinitely variable adjustment of saddle height) Patient’s weight: Max. 160 kg (with additional tilt protection) Storage space: 45 x 83 cm (with additional tilt protection 81 x 83 cm) Handlebar: 360° turnable Control unit: 180° turnable Display: TFT-Display 57 x 43 mm (VGA) (Visualization of all important ergometry data) Supply voltage: 230-240 V with 50 Hz, 110-120 V with 60 Hz (on customer request) Drive mechanism: Almost noiseless and maintenance-free drive unit with Poly-V belt Braking principle: Computer controlled eddy current brake with permanent torque control (Rotation speed independent brake control) Range of revolutions: 30 to 130 rpm, crank controlled (Independent on revolutions per minute) Load range: 1 to 20 watts, dependent on revolutions per minute, 20 to 500 watts, independent on revolutions per minute (acc. standard), Adjustable in steps of 1 watt Load tolerance: Acc. DIN VDE 0750-238 (within RPM independent operating range) Load precept: External by Master device (ECG, PC, …) via interface, Manual in steps of 5 watts or step profile Time intervals: 1 to 99 minutes Interfaces: RS232 (galvanically isolated), Bluetooth and WLAN interface to master device Long-term accuracy: Continuous torque control and equalization according to weight
